Side-Delivery Rake Gearbox S12

Gearbox聽For Rotary聽Rakes

S90, with 2聽gearbox聽of 9 Arms,聽suitable聽for machine with 6-7聽metersof work area

S11, with 2聽gearbox聽 of 11聽arms,聽suitablefor machine with 8-9聽meters聽of work area

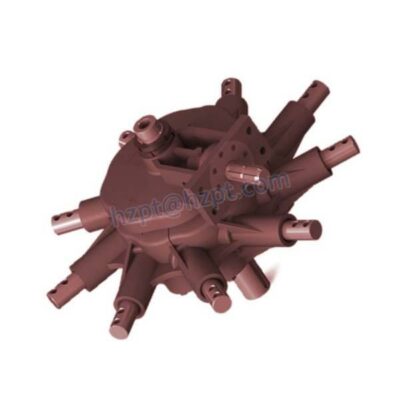

Side-Delivery Rake Gearbox

Application: Single Rotary Hay Rakes, Double Rotary Hay Rakes

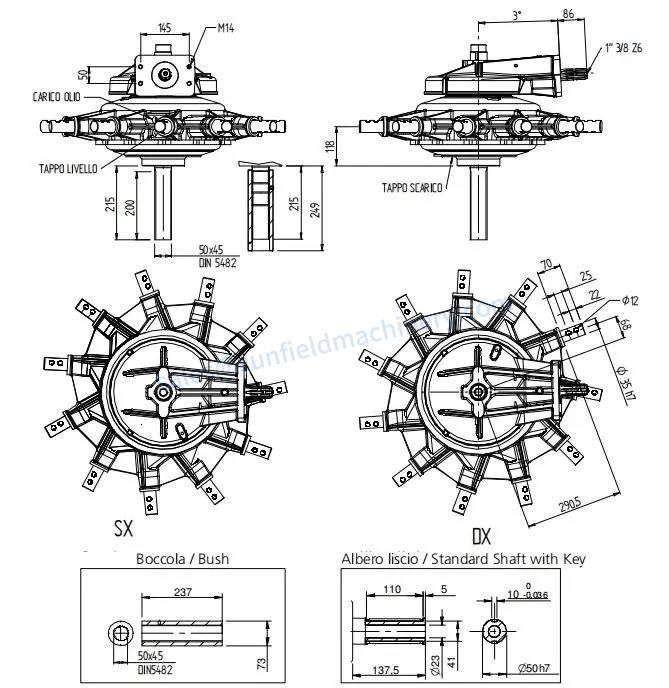

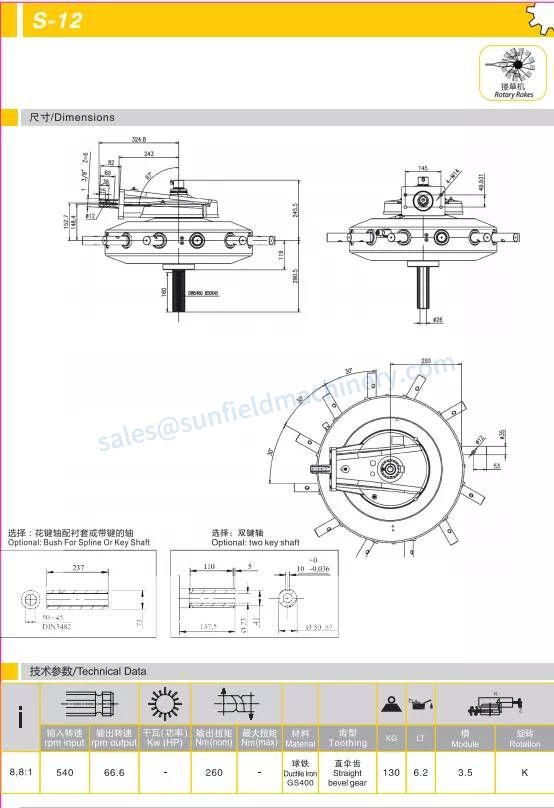

S12: 12-arms assembly, helical gears, transmission ratio 8.1:1, input speed (540 rpm), output maximal torque 312 Nm, cast iron housing GS400. Specific versions for double machines with rotation to the right and left

General technical features: GS400 cast iron housings, operating torque up to 240 Nm, transmission ratio 9.7:1, max. input speed (540rpm), maximum tooth module M5. Exclusively designed for rotary rakes.
